Comprehensive Research Report on Electrical Switchgear

1. Executive Summary

Electrical switchgear is an indispensable and critical component in modern power systems, with its core role being the protection, isolation, control, and distribution of electrical energy. This report aims to comprehensively elucidate the fundamental definition of switchgear, its core functions, key components, multi-dimensional classification methods (based on voltage level, insulating medium, construction type), diverse applications across various industries, relevant international standards (IEC, ANSI/IEEE), systematic maintenance procedures, crucial safety protocols, and an in-depth exploration of emerging technological trends such as smart features, environmentally friendly alternatives, digital transformation, and cybersecurity measures.

The importance of switchgear is manifested in its ability to ensure the safe, reliable, and efficient operation of power systems.¹ Through precise fault detection and rapid current interruption, switchgear protects expensive electrical equipment from damage and safeguards operating personnel.¹ Proper selection, standardized installation, regular maintenance, and an understanding of future technological trends are crucial for maximizing the effectiveness and extending the service life of switchgear. Notably, switchgear is evolving from traditional electromechanical protection devices into intelligent, networked components within a broader energy ecosystem.⁴ This evolution reflects wider trends of industrial digitalization (Industry 4.0) and sustainability, meaning that understanding switchgear requires not only electrical engineering knowledge but also multidisciplinary knowledge in communication technology, data analytics, and environmental science. The reliability and security of increasingly complex and interconnected power grids depend heavily on the advanced capabilities and robust performance of modern switchgear, the failure of which can lead to more widespread and severe consequences than ever before.

2. Introduction to Electrical Switchgear

2.1. Defining Switchgear: Core Concepts and Terminology

Electrical Switchgear, at its root, is a centralized collection of electrical devices designed to manage, protect, and isolate electrical equipment.¹ A more comprehensive definition states: "Electrical switchgear is defined as a centralized collection of circuit breakers, fuses, and switches (collectively known as circuit protection devices). These devices are installed in metal structures, and a collection of one or more such structures is called a switchgear line-up or assembly".¹ This definition emphasizes the protective core of switchgear.

However, the scope of switchgear can be broader, also including "fuses, switches, relays, isolators, circuit breakers, potential and current transformers, indicating devices, lightning arresters, etc.".³ This highlights the systemic nature of actual switchgear components. The terms "switchgear line-up" or "assembly" refer to the collection of one or more metal structures housing these devices.¹

Establishing a clear and comprehensive definition is crucial because "switchgear" can refer to anything from simple, single-purpose devices to complex, integrated systems. This section clarifies the scope of what is being discussed. The definition of switchgear has a degree of contextual dependence, reflecting its scalability and modularity. It can be narrowly viewed as a collection of interrupting devices or broadly as an integrated system with control and measurement capabilities. For instance, a basic switchgear unit might fit the definition focusing on protection devices ¹, while a complex switchgear assembly in a substation would align more with the broader definition including relays, transformers, etc..³ This is not a contradiction but reflects different levels of complexity and integration. This implies that the design and components of switchgear are tailored to specific application needs, ranging from simple load isolation to complex system protection and control. Therefore, engineers and technicians must understand the specific configuration and components of the switchgear they are dealing with, as its functionality and operational procedures can vary significantly. Misunderstanding the scope of a particular switchgear installation can lead to operational errors or safety hazards.

2.2. The Indispensable Role of Switchgear in Electrical Systems

Switchgear is an "integral part of an electric power system" ³ and a "fundamental component that ensures the safe, reliable, and efficient operation of electrical power systems".¹ It is widely found in the transmission and distribution systems of electric utility companies, as well as in medium to large commercial or industrial facilities.¹ Its primary purpose is to protect electrical hardware from fault conditions ³, de-energize equipment for maintenance and repair ³, and ensure optimal electrical protection.³

Without effective switchgear, electrical systems would be vulnerable to faults, leading to equipment damage, power outages, and potential safety hazards.¹ Switchgear has been hailed as a "shield against electrical threats" and the "cornerstone of modern power infrastructure".⁷ It plays a critical role in ensuring safety, equipment protection, control of power distribution, reliable power supply, compliance with standards, and system flexibility.²

This subsection emphasizes why switchgear is not merely an accessory but a critical necessity for any significant electrical installation, laying the groundwork for understanding its various functions. The criticality of switchgear is amplified by society's increasing reliance on uninterrupted and safe electricity. Its role has transcended mere equipment protection to ensuring societal and economic continuity. Multiple sources consistently describe switchgear as essential, indispensable, and fundamental for safety, reliability, and efficiency.¹ Various functions of modern society (commerce, healthcare, communication, industry) depend heavily on electricity. Therefore, the reliability and safety provided by switchgear are not just technical benefits but cornerstones of societal functioning. As energy systems become more decentralized (e.g., distributed renewable generation) and complex (e.g., smart grids), the role of switchgear in maintaining stability and safety will become even more critical and challenging, requiring smarter and more adaptive solutions. Investment in robust and modern switchgear is an investment in overall infrastructure resilience.

3. Fundamental Principles: Functions and Importance

This section details the primary operational roles of switchgear. Through several core functions, switchgear ensures the safe, reliable, and efficient operation of power systems. The table below outlines these functions and their importance.

Table 1: Overview of Switchgear Functions

This table provides a concise summary of the core functions of switchgear and its critical importance to power systems, facilitating a quick understanding of its multifaceted value.

3.1. Protecting Electrical Equipment and Personnel

Switchgear protects equipment by interrupting current flow during fault conditions, such as overloads or short circuits, thereby limiting current to safe levels.¹ Automated protective switchgear uses relays to detect faults and trigger circuit breakers to disconnect the faulty line, thus preventing damage to appliances and ensuring that the power supply to healthy sections remains uninterrupted.³ This function is crucial for the reliability and longevity of electrical assets and for preventing electrical hazards.¹ When a power surge occurs, switchgear interrupts the current, protecting the system from damage caused by energy overload.⁶

This is arguably the most critical function, directly impacting safety and the financial investment in electrical assets. The protective function of switchgear is not just reactive but also a form of risk management, mitigating potential financial losses from equipment damage and operational downtime, and ensuring personnel safety. Sources consistently describe the interruption of fault currents.¹¹ explicitly links this to "the reliability and longevity of electrical assets" and the prevention of "equipment damage, power outages, and potential safety hazards." ² emphasizes that faults can have "catastrophic consequences, posing risks to personnel and property." Therefore, when considering the cost of switchgear, it should be weighed against the potential cost of unprotected faults, including equipment replacement, lost production, and potential legal liabilities from accidents. As power systems handle increasing power levels and equipment becomes more sensitive (e.g., electronics, data centers), the precision and speed of switchgear's protective capabilities become increasingly important. This drives the need for advanced sensing and faster interruption technologies.

3.2. Isolation for Maintenance and Safety

Switchgear provides the means to isolate sections of an electrical system for maintenance, repair, or testing.¹ Switches and isolators within the switchgear allow operators to de-energize specific circuits or equipment, ensuring a safe working environment.¹ This capability is essential for the safe and efficient operation and upkeep of electrical systems.¹ One purpose of switchgear is to "de-energise set up for maintenance and repair".³

Without reliable isolation, safe maintenance is impossible. This function directly impacts worker safety and the ability to perform necessary upkeep. Effective isolation capability directly influences the maintainability and operational uptime of an electrical system. Well-designed switchgear facilitates quicker and safer maintenance, thereby reducing downtime. Multiple sources highlight the role of isolation for safe maintenance.¹ Safe maintenance requires confidence that a circuit is de-energized. If isolation is difficult, unreliable, or time-consuming, maintenance may be delayed, performed unsafely, or lead to extended outages. Features like visible breaks ¹⁰ and robust lockout/tagout procedures ¹¹ are directly related to this. The design of switchgear for ease and certainty of isolation (e.g., draw-out mechanisms, clear visual indications) is a key factor in overall system lifecycle management and operational efficiency. This becomes especially critical in continuous-operation facilities where downtime costs are high.

3.3. Controlling and Managing Power Flow

Switchgear controls power flow by allowing circuits to be switched on or off.¹ This control function is essential for managing power distribution, optimizing energy usage, and responding to changing operational needs.¹ Switchgear can provide "manual operations" capability in case of electrical control failure, indicating a manual override feature.³ This function of switchgear is likened to a "traffic director".⁷

Beyond protection, switchgear provides the means to actively manage how and where power is used. The control function of switchgear is evolving from basic on/off switching to sophisticated power flow management, integral to smart grid operations and energy efficiency strategies. Basic on/off control for selective energization is described in multiple sources.¹¹ links this to "optimizing energy usage" and "responding to changing operational needs." Future trends (Section 9) point towards smart switchgear with remote monitoring and control, and automation.⁴ This evolution suggests that switchgear is becoming an active participant in dynamic load management, demand response programs, and the integration of variable renewable energy sources. Modern switchgear equipped with advanced control capabilities can contribute significantly to grid stability, energy conservation, and operational flexibility, moving beyond its traditional protective role.

3.4. Efficient Power Distribution

Switchgear acts as a central point for distributing electrical power to various sections of a facility and to the electrical loads within those sections.¹ Incoming power is fed into the switchgear and then distributed through various outgoing circuits.¹ It plays a crucial role in substations managing power flow between high-voltage transmission lines and lower-voltage distribution networks.⁸ Its primary responsibility is energy distribution, ensuring a constant energy supply to all network recipients.⁹

This function pertains to the organized and safe delivery of power to where it is needed. The design and configuration of switchgear for power distribution directly impact the efficiency, reliability, and scalability of the electrical network. Switchgear is described as a "centralized collection" and a "central point for distributing electrical power".¹ Its role in managing power flow between different voltage levels and ensuring supply is also highlighted.⁸ The arrangement of busbars, circuit breakers, and feeders within the switchgear dictates how power is routed and segmented. A well-designed distribution scheme using switchgear can minimize losses, improve fault isolation (preventing widespread outages), and facilitate network expansion or modification. As energy demands grow and power networks become more complex, the role of switchgear in intelligent and flexible power distribution becomes increasingly important for optimizing asset utilization and ensuring grid stability.

4. Anatomy of Switchgear: Key Components and Their Roles

This section dissects a typical switchgear assembly, explaining the function of each major part. Switchgear is composed of various components that work in concert to achieve the core functions of protection, isolation, control, and distribution. The table below summarizes these key components and their primary roles.

Table 2: Key Switchgear Components and Their Primary Roles

This table provides a quick glossary and functional summary of the various components that make up switchgear, aiding in understanding how these individual parts work together to achieve the overall functionality of a switchgear assembly.

4.1. Circuit Breakers: The Primary Protective Devices

Circuit breakers function to automatically interrupt current flow in the event of an overload or short circuit.¹⁴ They are essential for protecting the system from faults and can be reset after operation.¹⁶ Types of circuit breakers include Air Circuit Breakers (ACBs), Vacuum Circuit Breakers (VCBs), Oil Circuit Breakers (OCBs), and Sulfur Hexafluoride (SF6) circuit breakers.¹ Each type uses a different medium to extinguish the arc generated during current interruption. VCBs are often used in medium-voltage systems due to their high efficiency and minimal arcing; SF6 breakers are typically used in high-voltage systems due to their high insulating and arc-quenching capabilities.¹⁴ IEEE C37.20.3 defines metal-enclosed switchgear containing circuit breakers.¹

Circuit breakers are the active protection workhorses capable of interrupting high fault currents. The choice of circuit breaker technology is a critical design decision, heavily influenced by voltage level, fault current capacity, environmental factors, and maintenance requirements. Different types exist (air, vacuum, oil, SF6), each with specific attributes.¹ VCBs are associated with medium voltage and SF6 with high voltage, indicating voltage-dependent selection.¹⁴ The interrupting medium (air, vacuum, oil, gas) directly impacts the breaker's size, interrupting capability, maintenance needs, and environmental impact (e.g., environmental concerns with SF6). Thus, selecting a circuit breaker is not a one-size-fits-all decision but a complex engineering trade-off. The trend towards SF6 alternatives (Section 9.2) will significantly impact circuit breaker design and selection, especially for medium and high-voltage applications, driving innovation in vacuum technology and alternative gases.

4.2. Fuses: Overcurrent Protection Mechanisms

Fuses are single-use devices that melt to break a circuit in the event of an overcurrent condition.¹ In medium-voltage applications, fuses are often paired with switches to provide overcurrent protection and circuit opening capabilities.¹ High Rupturing Capacity (HRC) fuses are common components in low-voltage switchgear.³

Fuses offer simple, reliable, and often cost-effective overcurrent protection, particularly in low-voltage systems or as backup protection. While less sophisticated than circuit breakers, fuses play a vital role in coordinated protection schemes, often providing faster clearance for very high fault currents or in applications where the cost and complexity of a circuit breaker are not justified. Fuses are described as "single-use" ¹⁴ and "sacrificial devices".¹⁵ They are simpler and often faster-acting for specific fault types compared to some breakers. Their use in conjunction with switches in MV applications ¹ suggests they are not direct replacements for breakers in all scenarios but serve a complementary role. Their simplicity and reliability ¹⁴ make them suitable for certain applications. The choice between fuses and circuit breakers (or their combination) is a key aspect of protection design, balancing cost, performance, reusability, and coordination requirements. The emergence of devices like vacuum fault interrupters ¹, which combine overcurrent protection and load switching, blurs this traditional distinction.

4.3. Switches (Disconnectors, Load Switches): Control and Isolation

Disconnect Switches/Isolators: Primarily used to provide a safe electrical isolation path during maintenance or isolation.10 Designed for no-load operation (no current flowing when operated).16 Often provide a visible break.10

Load-Break Switches: Capable of making, carrying, and breaking currents under normal operating conditions (but typically not fault currents).1 Can be categorized by medium type: air switches (economical, visible break), oil switches (compact, common in pad-mounted gear), vacuum switches (small footprint, for higher voltages).1

Switches are fundamental for enabling operational control and ensuring safety through guaranteed isolation. The distinction between disconnect switches (no-load) and load switches (load, normal current) is critical for safe operation. Misapplication can lead to severe equipment damage and personnel injury. The statement that disconnectors are for "off-load conditions" is explicit.¹⁶ Different types of switches (air, oil, vacuum) have "interrupting ratings," implying some can break load current.¹ The safety function and "visible break" of disconnectors are also emphasized.¹⁰ Attempting to open a circuit under load with a switch not designed for it can result in dangerous arcing. Therefore, proper operator training and clear labeling based on the switch's capability (isolation vs. load-break) are essential safety measures in any facility with switchgear. The development of hybrid devices like vacuum fault interrupters ¹ aims to simplify this by combining functions.

4.4. Relays: Sensing and Actuating Protection

Relays function to monitor electrical parameters (current, voltage, frequency), detect abnormal conditions, and send a trip signal to the circuit breaker.³ They are the "brains" of the protection system. Automated protective switchgear works such that: "When a fault occurs... the relay detects this abnormality. The relay then acts to close the faulty circuit and disconnect the disrupted line." (Note: "close the faulty circuit" likely means "close the trip circuit of the breaker").³ Relays guide circuit breakers and require testing.¹¹ Protective relays are listed as key switchgear components.⁷

Relays enable automated and intelligent protection, responding faster and more precisely than manual intervention. The evolution of relay technology from electromechanical to microprocessor-based has revolutionized protection schemes, allowing for more complex logic, communication capabilities, and adaptive protection. Early relays were electromechanical devices. Modern systems utilize "smart sensors and IoT capabilities" ⁴, which are often integrated with or function as advanced relays. Microprocessor-based relays offer multiple protection functions in a single unit, programmability, fault recording, and communication capabilities for SCADA integration. This shift has significantly enhanced the sophistication and effectiveness of switchgear protection. The increasing intelligence in relays is a key enabler for smart grids, contributing to better coordination, faster fault location, and improved system resilience. However, this also introduces cybersecurity vulnerabilities (Section 9.4).

4.5. Instrument Transformers (CTs and PTs): Measurement and Monitoring

Instrument transformers function to safely step down high currents (Current Transformers - CTs) and high voltages (Potential Transformers - PTs, also VTs) to lower, standardized values suitable for measuring instruments, meters, and protective relays.³ CTs convert large primary currents (e.g., hundreds of amps) to small secondary currents (e.g., 1A or 5A).²⁰ Their primary is connected in series with the line.¹⁸ PTs convert high primary voltages to standard secondary voltages (e.g., 110V or 120V).²⁰ Their primary is connected phase-to-phase or phase-to-neutral.¹⁸ They provide isolation between the high-power primary circuit and the low-power secondary (instrument/control) circuit, ensuring personnel safety.¹⁸

Accurate measurement is fundamental for protection, control, and billing. CTs and PTs are the essential interfaces enabling these functions. The accuracy class of instrument transformers is critical and directly impacts the performance of protection schemes and the correctness of energy metering. Inaccurate CTs or PTs can lead to relay misoperation or incorrect billing. CTs/PTs are described as "measuring devices" for accuracy and safety.¹⁹ Relays depend on the scaled-down signals from CTs/PTs to judge fault conditions. Metering systems rely on these signals for billing. If the transformation ratio is incorrect or the transformer introduces significant phase/magnitude errors, relays may trip incorrectly (too soon or too late) or not at all, and meters will record incorrect energy consumption. Industry standards specify different accuracy classes for CTs/PTs depending on their application (e.g., protection class CTs vs. metering class CTs have different requirements). Therefore, the selection and periodic testing of instrument transformers are crucial for maintaining the integrity of the entire protection and monitoring system. The trend towards digital switchgear (Section 9.1) may involve non-conventional instrument transformers (e.g., optical sensors, Rogowski coils) with different performance characteristics and integration benefits.

4.6. Busbars and Connectors: Power Conduction Paths

Busbars, typically made of copper or aluminum, are designed to conduct large currents and withstand high temperatures, providing a common electrical pathway within the switchgear.⁷ Connectors are used to join busbars and connect them to incoming/outgoing circuits and components. Busbars may be tinned or silver-plated to increase durability and improve conductivity at connection points.²¹ Insulated busbars (using heat-shrink sleeving or epoxy coating) can reduce electrical clearance requirements and enhance safety.¹⁵

Busbars are the circulatory system of the switchgear, distributing power to all connected circuits. The design of the busbar system (including material, cross-section, supports, and insulation) is critical to the switchgear's overall current-carrying capacity, short-circuit withstand capability, and physical size. Busbars carry "large currents".¹¹ Their ability to withstand fault currents (thermally and mechanically) is a key design parameter. Material (copper vs. aluminum) affects conductivity, size, and cost. Insulation ¹⁵ allows for more compact designs by reducing phase-to-phase and phase-to-ground clearances. Proper connections and jointing techniques are essential to prevent hot spots and failures. A failure in the busbar system (e.g., due to loose connections, inadequate support, or insulation breakdown) can be catastrophic, leading to extensive damage and prolonged outages. Thus, their design, installation, and maintenance (e.g., thermographic inspections) are critical.

4.7. Control Panels and Enclosures: Housing and Interaction

Enclosures: These are the metal structures that house all switchgear components.1 They provide physical protection for the components from environmental factors (dust, moisture 7) and mechanical damage, and ensure personnel safety by preventing accidental contact with live parts.1 Enclosures can be designed for indoor or outdoor use with different NEMA/IP ratings.6 Arc-resistant enclosures are designed to safely contain and direct arc flash energy.1

Control Panels: Serve as the central command and monitoring hub, housing control devices (switches, pushbuttons), indicating lights, meters, and protective relays.17 They provide the human-machine interface (HMI) for operating and monitoring the switchgear. Switchgear cabinets may contain separate busbar rooms, instrument rooms, and switch rooms.22 GGD type switchgear design considers heat dissipation and aesthetics.23

Enclosures provide physical integrity and a safety barrier, while control panels offer the operational interface. The design of switchgear enclosures and control panels significantly impacts not only safety and reliability but also ease of operation, maintainability, and the integration of future technologies. Enclosures provide protection and safety.¹ Control panels provide the HMI.¹⁷ Detailed considerations for enclosure design include compartmentalization, heat dissipation, ergonomics ("comfortable visual environment"), and maintenance accessibility ("top cover can be removed").²² Arc-resistant design ¹ is a key safety evolution in enclosure technology. Modern control panels are increasingly digital, featuring touchscreens and network connectivity for remote access and data acquisition, aligning with smart switchgear trends. Enclosure and control panel design must evolve to accommodate increasing component density, thermal management challenges from electronic components, and the integration of digital interfaces and communication ports, all while maintaining or enhancing safety and usability.

5. Classifying Switchgear

Switchgear can be classified in several ways, primarily based on its voltage level, the insulating medium used, and its construction type. Understanding these classifications is essential for selecting the appropriate switchgear for a specific application.

5.1. Based on Voltage Level

This is the most fundamental classification, as voltage dictates design, insulation requirements, and application areas. The table below clearly delineates the main categories of switchgear based on voltage, which is the primary and most critical parameter for selection. It provides a quick understanding of the operating range, typical components, and application areas for each type.

Table 3: Comparison of Switchgear Types by Voltage Level

5.1.1. Low Voltage (LV) Switchgear

(https://www.enweielectric.com/products/switchgear/low-voltage-switchgear/ggd) operates at voltages up to 1kV ³, with common levels being 208V, 240V, 480V, 600V.⁶ Its components include low-voltage circuit breakers (like ACBs, MCCBs, MCBs), switches, HRC fuses, earth leakage circuit breakers, and load disconnectors.³ LV switchgear is widely used in residential, commercial, and industrial facilities to regulate power for HVAC, lighting, building systems, and small machinery.⁶ The GGD type low-voltage distribution cabinet emphasizes a universal cabinet form, heat dissipation, and aesthetics.²³

LV switchgear is the most widely applied type, crucial for final power distribution and protection in most inhabited buildings and small industrial environments. Despite lower operating voltages, the sheer volume and ubiquity of LV switchgear mean safety, reliability, and cost-effectiveness are paramount design drivers. Standardization and mass production are common. LV switchgear is used in "residential, commercial, and industrial facilities" ⁶, implying a very large installed base. Components like MCBs and MCCBs are highly standardized.³ The pre-production of GGD type cabinets shortens manufacturing cycles and improves efficiency, reflecting mass production principles.²³ The focus is on protecting circuits from "mechanical and thermal stress" and ensuring safety for general users/occupants.³ Innovations in LV switchgear often focus on compactness, ease of installation, enhanced safety features like arc fault detection, and integration with building management systems for smart energy control.

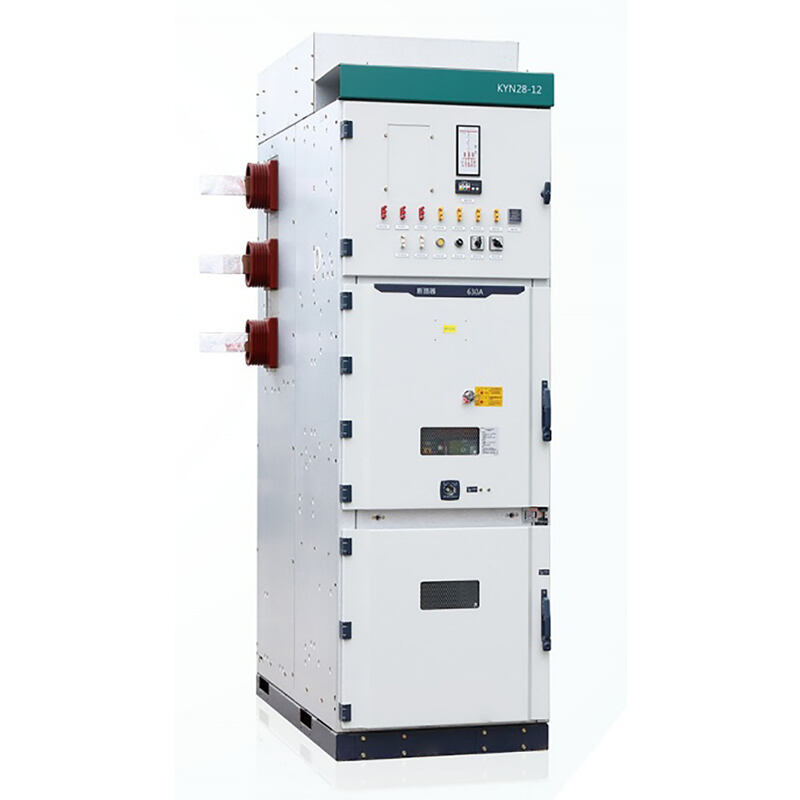

5.1.2. Medium Voltage (MV) Switchgear

(https://www.enweielectric.com/products/switchgear/medium-voltage-switchgear/hxgn) operates in voltage ranges like 1kV to 36kV ³, or 1kV to 75kV ⁶, or 3kV to 36kV.³ Eaton specifies 1-38kV.¹ For example, HXGN type MV switchgear is suitable for 1-40.5kV.²² It uses vacuum, oil, or SF6 circuit breakers and switches with various arc-quenching media.¹ Its tasks include interrupting short-circuit currents, switching capacitive/inductive currents, and normal on/off switching operations.³ MV switchgear is commonly found in utility substations, industrial plants (motors, feeders, generators), renewable energy generation (solar, wind), and large commercial facilities.¹

MV switchgear forms a critical link between high-voltage transmission/sub-transmission and low-voltage distribution, or directly supplies large industrial loads. MV switchgear faces challenges of higher fault levels than LV, more complex protection requirements, and often space constraints, driving innovation in compact and reliable arc-quenching technologies like vacuum. MV switchgear operates at higher voltages than LV, typically with higher fault levels. It handles significant tasks like "interrupting short circuit current, switching capacitive winds and inductive currents".³ Vacuum circuit breakers are noted for their ability to "interrupt much higher voltage faults than air circuit breakers and require significantly less space".¹ Compact switchgear solutions are available for space-constrained installations.¹ The reliability of MV switchgear is crucial for industrial productivity and the stability of utility distribution networks. The trend towards SF6-free alternatives (Section 9.2) is particularly significant in the MV range due to its large installed base and increasing environmental scrutiny.

5.1.3. High Voltage (HV) Switchgear

High Voltage (HV) switchgear operates at voltages above 36kV ²⁴ or 35kV ¹⁴, or from 75kV up to about 230kV.⁶ (Note: "HV" threshold varies slightly by source but generally >36kV or >75kV). It employs disconnectors, earthing switches, high-current switching mechanisms (often SF6 circuit breakers), and fuses.⁶ Due to the potential for powerful arcs and high fault incidence, HV switchgear needs to operate continuously and reliably.⁶ It is commonly found in large power transmission and distribution systems, utility generating stations, and heavy industrial facilities.⁶

HV switchgear handles bulk power transmission and is critical to the stability and security of national and regional grids. HV switchgear design prioritizes extreme reliability, high interrupting capacity, and robust insulation due to the immense power levels handled and the severe consequences of failure. Physical size and cost are significant factors. HV systems operate at the highest voltage and power levels. It "needs to operate continuously and reliably" and handles "powerful arcs".⁶ Components are physically larger to provide necessary insulation and withstand mechanical forces during fault interruption. The impact of an HV switchgear failure can be very widespread, affecting large numbers of customers or critical infrastructure. Advanced monitoring, diagnostics, and predictive maintenance are increasingly important for HV switchgear due to its critical role and high cost. The push for SF6-free alternatives presents significant technical challenges at HV levels but is a major R&D focus.

5.2. Based on Insulating Medium

The insulating medium is crucial for preventing electrical breakdown between live parts and between live parts and ground, and in some cases, for arc extinction in circuit breakers. The choice of insulating medium profoundly impacts the switchgear's size, cost, maintenance, environmental impact, and performance. The table below provides a clear comparison of these critical trade-offs.

Table 4: Comparison of Switchgear Insulating Media

5.2.1. Air-Insulated Switchgear (AIS)

Air-Insulated Switchgear (AIS) uses ambient air ³ or compressed air/magnetic force ⁶ for insulation and sometimes for arc elongation. It is characterized as simple, economical, environmentally friendly, common, and cost-effective.³ AIS is suitable for smaller installations where space is not a constraint ³, or where simplicity is valued.

AIS is a traditional and widely used technology, especially in low and medium voltage. While cost-effective and simple, AIS typically requires larger physical dimensions compared to other insulation types at the same voltage level, especially at MV and HV, due to the lower dielectric strength of air. Air has a lower dielectric strength than SF6, oil, or vacuum. To prevent flashovers, larger clearances (distances between live parts and ground, and between phases) are needed in AIS. This directly translates to larger enclosure sizes. It is suitable for "smaller installations where space is not a constraint".³ In urban areas or installations where space is at a premium, the larger footprint of AIS can be a significant disadvantage, leading to the selection of more compact technologies like GIS or vacuum-based solutions.

5.2.2. Gas-Insulated Switchgear (GIS)

Gas-Insulated Switchgear (GIS) typically uses pressurized Sulfur Hexafluoride (SF6) gas to insulate conductors/contacts and extinguish arcs.³ SF6 has a higher dielectric strength than air, allowing for more compact designs.¹⁷ However, SF6 is a potent greenhouse gas, leading to a strong push for alternatives.⁶ Alternatives include Carbon Dioxide (CO2) ⁶, Siemens' "Blue GIS" (clean air and vacuum technology), and GE's g³ gas.¹³

GIS enables highly compact substations, crucial for urban environments or space-constrained industrial sites, especially at MV and HV levels. The future of GIS is inextricably linked to the successful development and adoption of environmentally friendly SF6 alternatives that can match its performance without its environmental drawbacks. SF6 has excellent technical properties (high dielectric strength, good arc quenching) enabling compact GIS.¹⁷ However, SF6 has a very high global warming potential.⁶ Regulatory pressure and environmental concerns are driving the search for alternatives.¹³ The challenge is to find alternatives that are technically viable (performance, cost, long-term stability) and genuinely environmentally benign throughout their lifecycle. The transition away from SF6 is a major technological shift for the switchgear industry, requiring significant R&D, new standards, and changes in operational practices (e.g., handling of alternative gases). Success in this area is critical for the power industry to meet its sustainability goals.

5.2.3. Oil-Insulated Switchgear (OIS)

Oil-Insulated Switchgear (OIS) uses mineral oil as an insulating and cooling medium; when current-carrying contacts separate, the oil vaporizes along the arc path, creating a hydrogen gas bubble that surrounds the arc, thereby extinguishing the current and preventing arc re-strike.¹ OIS offers high dielectric strength and good cooling properties.¹⁷ It is common in pad-mounted switchgear due to oil insulation permitting compact, low-profile enclosures.¹

OIS is a long-established technology, particularly in distribution networks. Despite its effectiveness, OIS faces challenges related to flammability, environmental concerns from oil leaks, and higher maintenance requirements compared to newer technologies like vacuum or SF6-free GIS. Oil is flammable, posing a fire risk. Oil leaks can contaminate the environment (the existence of IEEE 980 "Guide for Containment and Control of Oil Spills in Substations" indicates this is a known issue ²⁵). Oil requires periodic testing and reclamation/replacement. These factors have led to its declining use in new indoor installations and a preference for alternatives in many applications. The use of OIS is generally declining in favor of dry-type, vacuum, or SF6-free gas technologies, especially where environmental and fire safety are primary concerns. However, a large installed base of OIS remains in operation, requiring ongoing specialized maintenance.

5.2.4. Vacuum-Insulated Switchgear (VIS)

In Vacuum-Insulated Switchgear (VIS), the interruption and quenching of the arc occur within a sealed vacuum interrupter.¹ The vacuum allows the arc to be extinguished quickly, reducing arc energy.¹ VIS can interrupt higher voltage faults than air circuit breakers and requires significantly less space.¹ VIS offers advantages of high dielectric strength, high reliability, low maintenance, and compact design.¹⁷ Eaton's VacClad metal-clad switchgear and ISG-SD switchgear utilize vacuum technology.¹ Vacuum fault interrupters combine overcurrent protection and load-break switch functions.¹

Vacuum technology is dominant for medium-voltage circuit breakers due to its excellent performance, reliability, and the maintenance-free nature of the interrupters. Vacuum interrupters are primarily arc-quenching devices. The overall switchgear assembly using vacuum interrupters will still rely on other media (like air or solid insulation) for general phase-to-phase and phase-to-ground insulation within the enclosure. Arc interruption occurs in "sealed vacuum bottles".¹ Advantages of "vacuum-insulated switchgear" include high dielectric strength and compact design, but this often refers to the interrupter itself.¹⁷ The switchgear cabinet is much larger than the vacuum bottle. The space between the vacuum interrupter and the earthed metal enclosure, and between interrupters of different phases, needs insulation – this is typically air or solid insulating materials. Thus, "vacuum-insulated switchgear" generally refers to switchgear using vacuum interrupters, not that the entire cabinet is under vacuum. The success of vacuum technology in MV is driving research into its application at HV levels. Its environmentally friendly nature (no greenhouse gases) makes it a strong contender in the SF6 phase-out, often combined with clean air or other eco-friendly gases for primary insulation in GIS designs.

5.3. Based on Construction Type

The physical construction and arrangement of components within the switchgear enclosure impact safety, maintainability, and footprint.

5.3.1. Metal-Enclosed Switchgear

Metal-enclosed switchgear is defined by IEEE C37.20.3.¹ Its components (circuit breakers, fuses, switches, control/metering equipment) are housed within a metal structure.¹ It is typically used in low voltage (up to 1kV), with all components contained in a single metal enclosure, and breakers often in the same compartment as busbars. This construction is easily accessible but offers less compartmentalization than metal-clad switchgear.²⁶ It provides protection against external factors and reduces the risk of accidental contact with live parts.¹⁵

This is a common construction type offering basic safety and protection. "Metal-enclosed" is a broad category. While it provides a degree of safety by enclosing live parts, the level of internal segregation and fault containment can vary significantly compared to metal-clad designs. Metal-enclosed is described as having "all the components... in a single metal housing" and "no separate compartments for the busbars or other components" compared to metal-clad, where components are in "separate metal compartments".¹⁵ This implies that a fault in one part of a metal-enclosed unit is more likely to propagate to other sections than in a metal-clad unit. For applications demanding higher safety and reliability, especially at medium voltages, metal-clad construction is often preferred over basic metal-enclosed designs due to its superior fault containment capabilities.

5.3.2. Metal-Clad Switchgear

Metal-clad switchgear is defined by IEEE C37.20.2.²⁶ Its components (e.g., circuit breakers, busbars, CTs/PTs, cables) are housed in separate, grounded metal compartments.¹⁵ This provides a higher level of protection and safety by preventing fault propagation between compartments.¹⁵ It is typically used in medium-voltage applications (2.4kV to 38kV).²⁶ Often features draw-out circuit breakers for ease of maintenance.¹⁵

Metal-clad is considered a premium construction type offering enhanced safety and reliability. Compartmentalization in metal-clad switchgear is a key design feature that directly contributes to personnel safety (by isolating live sections during maintenance on one compartment) and system reliability (by containing faults and limiting damage). The emphasis is on "separate metal compartments" and preventing "fault propagation".¹⁵ Draw-out circuit breakers (common in metal-clad) allow the breaker to be physically racked out to a safe test/disconnected position, isolating it from live busbars.¹⁵ This physical isolation and containment significantly reduce the risk of arc flash exposure to personnel working on an isolated section and limit the extent of damage should a fault occur. The specification of metal-clad switchgear often reflects a higher emphasis on safety and operational continuity, justifying its typically higher cost than simpler metal-enclosed types. Standards like IEEE C37.20.2 provide detailed requirements for this construction.

5.3.3. Pad-Mounted Switchgear

Pad-mounted switchgear is designed for outdoor installation, mounted on a concrete pad.¹⁵ It is commonly used in underground cable systems for utility distribution networks.¹⁵ It provides easy access for maintenance personnel while being protected from environmental factors.¹⁵ Often uses oil or vacuum switches/interrupters due to the need for compact, environmentally sealed designs.¹

This is essential for underground distribution systems common in urban and suburban areas. Pad-mounted switchgear design balances environmental durability, tamper resistance, public safety (as it's often in accessible locations), and operational requirements for utility personnel. "Outdoor installation," "mounted on a concrete pad" ¹⁵ implies exposure to weather, public accessibility, and specific utility operational needs. "Protected from environmental factors".¹⁵ Compactness is often key, hence the use of oil or vacuum insulation/interruption.¹ Security features to prevent unauthorized access and ensure safe operation by utility crews are critical. Aesthetics and footprint of pad-mounted gear are also considerations, especially in residential areas. Innovations focus on more compact, potentially SF6-free, and smarter (remote monitoring) pad-mounted solutions.

5.3.4. Draw-Out Switchgear

Draw-out switchgear is a feature rather than a standalone construction type, commonly found in metal-clad switchgear.¹⁵ It allows circuit breakers or other primary components to be physically withdrawn (racked out) from their connected position to a test or disconnected position, or removed entirely for maintenance.¹⁵ It utilizes rackable breakers with threaded shafts or motorized drives.¹⁵ It facilitates easier and safer maintenance as components can be worked on while isolated from live circuits.¹⁵ It includes interlocks to prevent hazardous operations (e.g., racking out a closed breaker).¹⁵

This significantly enhances the maintainability and safety of key components like circuit breakers. The draw-out feature, while adding mechanical complexity, fundamentally improves the operational lifecycle management of switchgear by minimizing maintenance downtime and enhancing personnel safety. "Easier to maintain".¹⁵ "Allows isolated maintenance".¹⁵ The ability to move the breaker to "test" and "disconnected" positions ¹⁵ allows for safe diagnostics and work without de-energizing the entire bus. This reduces outage times and improves safety for maintenance staff. For critical facilities where downtime is unacceptable or costly, draw-out switchgear is often a standard requirement. The reliability of the racking mechanism itself becomes an important factor.

6. Applications of Switchgear Across Industries

The versatility of switchgear allows it to be tailored for a wide range of applications, each with specific needs.

6.1. Utility Power Systems (Generation, Transmission, Distribution)

• Generation: High-voltage switchgear controls power flow from generators to the grid, protecting expensive generating equipment.⁶
• Transmission: High-voltage switchgear (e.g., in substations) manages bulk power transfer over long distances, ensuring grid stability and reliability.¹
• Distribution: Medium and low-voltage switchgear in substations and along distribution lines manage power flow to consumers, isolate faults, and ensure network connectivity.¹ Pad-mounted switchgear is common in underground distribution systems.¹⁵

Utilities rely heavily on switchgear across all voltage levels for their core business of safely and reliably generating, transmitting, and distributing electricity. Utility switchgear must meet very high reliability and safety standards due to the critical nature of electricity supply and the widespread impact faults can have. Longevity and robustness are key. Utilities are responsible for public power supply. Failures can lead to widespread blackouts with significant economic and social consequences. Switchgear in utility applications ¹ must be designed for long service life (decades) under various environmental conditions and be capable of handling high fault currents. Standards like IEEE and IEC are rigorously applied. Modernization of aging utility infrastructure often involves upgrading or replacing old switchgear with newer, smarter, and more reliable technologies to improve grid resilience and accommodate new energy sources.

6.2. Industrial Plants (Manufacturing, Oil & Gas, Mining)

Medium and low-voltage switchgear is extensively used for power distribution to motors, machinery, and control systems.¹ It ensures protection against overloads and faults that could cause production stoppages, equipment damage, or safety hazards.¹⁴ In heavy industries like mining, chemical, steel, and refineries, switchgear must be robust to handle large loads and harsh environments.²⁴

Reliable power is crucial for industrial productivity and safety. Switchgear plays a key role in achieving this. Industrial switchgear often requires customization to meet specific process needs, harsh environmental conditions (e.g., corrosive atmospheres, dust, vibration), and high reliability requirements to avoid costly production losses. Industrial environments can be "harsh".²⁴ Production continuity is paramount; "unexpected downtime is one of the most costly frustrations".¹¹ Loads can be demanding (e.g., large motors with high starting currents). Therefore, industrial switchgear must be particularly robust, reliable, and often tailored to the specific industry (e.g., explosion-proof enclosures for hazardous areas in oil & gas). Integration of switchgear with industrial automation systems (e.g., SCADA, DCS) is vital for centralized monitoring, control, and predictive maintenance to optimize plant operations and minimize downtime.

6.3. Commercial and Residential Buildings

Primarily uses low-voltage switchgear for power distribution to lighting, HVAC, appliances, and other building systems.⁶ It ensures the safety of occupants and protection of electrical installations.³ Medium-voltage switchgear may be used in large commercial complexes or institutions with their own substations.¹

Switchgear in buildings is essential for everyday safety and functionality. In commercial and residential settings, switchgear selection often balances safety and compliance with cost, space constraints, and ease of use by non-specialized personnel (for LV equipment). Applications include "lighting and HVAC systems" in commercial buildings ²⁴ and general power in residential buildings. Occupant safety is a primary concern. Cost is a significant factor, especially in residential construction. Space is often limited, favoring compact designs. The rise of smart buildings is driving demand for LV switchgear with communication capabilities for integration into building management systems, enabling energy monitoring, remote control, and enhanced safety features like Arc Fault Circuit Interrupters (AFCIs).

6.4. Renewable Energy Installations (Solar, Wind)

Medium-voltage switchgear is used to connect solar farms and wind turbines to the grid, manage the power generated, and provide protection.³ Switchgear helps integrate intermittent renewable sources safely and efficiently into the larger power grid.¹⁴

As renewable energy generation grows, specialized switchgear solutions are needed to handle its unique characteristics. Switchgear for renewable applications must manage the variability and intermittency of generation, often requiring more frequent switching operations and advanced control features for grid stability. Renewables like solar and wind are intermittent.¹⁴ This means power output fluctuates, impacting grid stability. Switchgear needs to manage these connections, protect the renewable assets, and ensure compliance with grid codes. This may involve more sophisticated control and protection relays, and switchgear designed for a higher number of switching operations. The rapid growth of distributed renewables necessitates advanced switchgear solutions that can support bi-directional power flow, microgrid formation, and provide enhanced grid support functions (e.g., voltage and frequency regulation).

6.5. Data Centers and Critical Infrastructure

Switchgear is vital for ensuring an uninterrupted, high-quality power supply to sensitive equipment like servers and networking devices.²¹ Custom electrical switchgear is often designed to meet specific requirements for power distribution and control in these high-reliability applications.²¹

Power reliability is paramount in data centers and other critical facilities (hospitals, financial institutions). Switchgear for data centers and critical infrastructure prioritizes redundancy, rapid fault detection and isolation, and seamless integration with backup power systems (UPS, generators) to achieve maximum uptime. Data centers require extremely high levels of power reliability; downtime costs are exceptionally high. "Custom electrical switchgear" is highlighted for "tailored power distribution" in such applications.²¹ This means switchgear incorporates features like redundant power feeds, automatic transfer switches (ATS), and sophisticated monitoring and control systems. The growing demand for data processing and digital services is driving innovation in highly reliable and intelligent switchgear solutions designed for the unique power quality and uptime requirements of data centers.

7. Adhering to Global Standards: IEC vs. ANSI/IEEE

International standards ensure the safety, reliability, and interoperability of switchgear. Understanding the differences between these two major standards systems is crucial for international projects, equipment specification, and ensuring compliance. The table below provides a structured comparison of their core philosophies and practical implications. For more detailed information, you might want to consult resources that delve into(your-blog-url-for-iec-ansi-standards).

Table 5: Comparison of IEC and ANSI/IEEE Switchgear Standards

7.1. Importance of Switchgear Standardization

Standards ensure manufacturing consistency, safety, reliable performance, and interoperability of equipment from different vendors.⁷ They build user confidence and help minimize risks to personnel and property.⁷ North America has OSHA, NFPA, ANSI/IEEE (e.g., C37.20 series) standards; globally, IEC standards prevail.¹

Standards are the bedrock of safe and reliable electrical systems. Standardization, while promoting safety and interoperability, can also influence market dynamics and innovation pathways. The differing philosophies of ANSI/IEEE (more prescriptive) and IEC (more performance-based) can lead to different approaches in product development. Standards ensure safety and reliability.⁷ ANSI is "design-based," IEC is "performance-based".²⁹ Design-based standards can lead to more uniform products but may slow the adoption of novel designs that don't fit the prescription. Performance-based standards allow greater design freedom as long as performance criteria are met, potentially fostering more diverse innovations. Global harmonization of standards is a long-term goal ²⁸ but significant differences persist, requiring manufacturers to often design and test products for both sets of standards if operating globally, adding cost and complexity.

7.2. Overview of IEEE Standards (North America)

IEEE standards are developed by industry stakeholders (manufacturers, users).⁷ Key standards include the IEEE C37.20 series for switchgear design and application.¹ ANSI (American National Standards Institute) often adopts IEEE standards. ANSI/IEEE standards are voluntary but often tied to building/safety codes and enforced through regulation.²⁸ IEEE has a vast collection related to power systems, including 89 switchgear standards covering areas like substation grounding, fire protection, reliability, and protective relays.²⁵

IEEE standards are dominant in North America and influential in some other regions. The close linkage of ANSI/IEEE standards with local North American codes/legal frameworks ²⁹ means compliance is often de facto mandatory for market access and operational approval. ANSI/IEEE standards are "voluntary".²⁸ However, they are "closely tied in with building and safety codes," allowing for "oversight and inspection".²⁹ "Federal, state, and local regulations then enforce the use of certified products".⁷ This effectively makes adherence to these standards necessary for legal operation and insurance purposes in many North American jurisdictions. Manufacturers targeting the North American market must rigorously follow IEEE standards and often seek third-party certification (e.g., UL) to demonstrate compliance.

7.3. Overview of IEC Standards (Europe and Beyond)

IEC (International Electrotechnical Commission) standards prevail in Europe and most other parts of the world.¹ IEC standards are generally performance-based, stating the intent of the design and test compliance.²⁹ Key standards include the IEC 62271 series for high-voltage switchgear and controlgear (e.g.²² mentions IEC 62271 and IEC-based GB/T11022). IEC 60439/61439 for low-voltage switchgear (e.g.²³ mentions IEC 439 and GB7251). IEC standards often include a large number of ratings, with manufacturers deciding which to offer, providing flexibility but also potential confusion.²⁸

IEC standards are crucial for global trade and for ensuring basic levels of performance and safety worldwide. The performance-based nature of IEC standards allows manufacturers greater innovation and flexibility in design, but also places more responsibility on users/specifiers to ensure the chosen product meets all specific application requirements, as local practices and enforcement can vary.²⁹ IEC is "performance-based".²⁹ This means "manufacturers of IEC equipment are more free to innovate".²⁹ However, "local practices, codes and legal environments vary drastically," and some regions may have stricter requirements than IEC or only comply with parts of it.²⁹ This implies that simply stating "IEC compliant" may not be sufficient; users need to understand which specific parts of the standard are relevant and if local deviations exist. While IEC standards provide a global framework, regional or national adoptions (e.g., EN standards in Europe, GB standards in China) can introduce specific modifications or additional requirements that need to be considered.

7.4. Key Differences and Considerations (Design Philosophy, Ratings, Testing)

• Design Philosophy: ANSI/IEEE is more design-based (prescriptive), IEC more performance-based (flexible).²⁹ ANSI can specify physical features (e.g., paint color, sheet metal thickness), leading to more uniform equipment. IEC allows manufacturers more innovation in achieving performance.²⁹
• Ratings & Testing: Voltage levels, current ratings, kA interrupting levels, and frequency (ANSI 60Hz vs IEC 50Hz) differ.²⁸ ANSI often has limited, well-defined rating combinations; IEC may offer many, leading to flexibility or confusion.²⁸ Testing requirements (e.g., temperature rise, enclosure IP vs NEMA ratings) are not directly equivalent.²⁹
• Metal-Clad Definition: Both describe metal-clad as a subset of metal-enclosed. IEC requires metal-clad to have grounded metal partitions; ANSI/IEEE has more detailed specifications for compartmentalization.³⁰
• A detailed comparison table for HV metal-clad switchgear highlights differences in basics, design tests, production tests, and constructional features.²⁸

These differences are not trivial and can significantly impact equipment selection, design, and cost for international projects. "Equivalency" between IEC and ANSI/IEEE compliant switchgear is complex and rarely straightforward. A product designed and tested to one standard may not automatically meet the requirements of the other, even if nominal ratings appear similar. "Electrical testing and ratings between IEC and ANSI are not necessarily the same or equivalent. IEC equipment may not pass the equivalent ANSI test, and vice versa".²⁹ Differences exist in fundamental aspects like power frequency, standard voltage levels, and how ratings are defined and combined.²⁸ Even seemingly similar concepts like enclosure protection (NEMA vs. IP) "do not compare apples-to-apples".²⁹ Therefore, assuming direct interchangeability based on nominal ratings can be risky. For global projects or companies operating in different standard regions, careful engineering assessment is required. Manufacturers may offer products with dual certification or regional variations ²⁹, but specifiers must understand the nuances to ensure full compliance and fitness for purpose in the target location.

8. Ensuring Longevity and Safety: Maintenance and Procedures

Regular maintenance is crucial for the reliable and safe operation of switchgear, preventing unexpected downtime and costly repairs.³¹ The table below provides a practical, actionable overview of essential switchgear maintenance tasks. It helps users understand the scope of a comprehensive maintenance program and can serve as a basis for developing site-specific procedures.

Table 6: Switchgear Maintenance Checklist Overview

8.1. Importance of Regular Switchgear Maintenance

The primary reason for regular maintenance is safety: identifying and correcting hazards (like loose connections, damaged insulation, worn components) that could lead to fire or electric shock.³¹ It ensures reliability and continuity of power, preventing costly unexpected downtime.¹¹ Maintenance also improves efficiency: clean, well-lubricated, and correctly tightened components reduce energy losses and extend equipment life.³² Furthermore, it improves performance: reducing voltage drops, improving power quality, and minimizing nuisance trips.³²

Proactive maintenance is an investment, not an expense, especially when considering the potential costs of a failure. A well-structured preventive maintenance program, following standards like NETA ¹¹, is more cost-effective in the long run than reactive maintenance (repair after failure), especially considering the collateral damage and extended outages a switchgear failure can cause. "Unexpected downtime is one of the most costly frustrations," and "the best time to discover a problem... is before major problems occur".¹¹ Benefits of maintenance include safety, reliability, efficiency, and performance.³² These benefits directly translate to reduced operational risks and costs. NETA provides periodic maintenance schedules ¹¹, indicating this is a standardized, proactive approach. The increasing complexity of modern switchgear (with more electronics and software) may require new maintenance skills and diagnostic tools beyond purely mechanical and basic electrical checks.

8.2. Common Maintenance Procedures (Inspection, Cleaning, Lubrication, Testing)

• Inspection: Visual checks for wear, corrosion, damage, overheating, leaks, etc..³¹
• Cleaning: Removing dust/contaminants to prevent insulation breakdown and overheating.³¹
• Lubrication: For smooth operation of moving parts (mechanisms, hinges).³¹
• Testing:
  • Electrical Tests: Insulation resistance, contact resistance, dielectric strength.³¹
  • Component Tests: Circuit breaker trip tests, relay calibration and functional tests.³¹
  • Thermography: Infrared scanning for hot spots.³¹

These are the hands-on activities that keep switchgear in optimal condition. The effectiveness of maintenance procedures largely depends on the training and qualification of personnel, the use of appropriate tools and test equipment, and adherence to manufacturer recommendations and industry best practices. The listed procedures (inspection, cleaning, lubrication, various tests) require specific knowledge and skills. "All operation and maintenance personnel should be appropriately trained".¹¹ It's recommended to "ensure that only qualified personnel perform... maintenance" and "use original manufacturer parts".³¹ Improper maintenance can be as detrimental as no maintenance, potentially introducing new faults or safety hazards. As switchgear becomes more digital, maintenance will increasingly involve software diagnostics, firmware updates, and cybersecurity checks, demanding an evolving skillset from maintenance teams.

8.3. Critical Safety Procedures (Lockout/Tagout, PPE, Arc Flash Safety)

• Lockout/Tagout (LOTO): De-energizing equipment and placing locks/tags during maintenance to prevent accidental re-energization. Essential training for all personnel.³¹
• Personal Protective Equipment (PPE): Mandatory use of insulated gloves, arc-rated clothing, safety glasses/face shields, hard hats, safety boots.¹¹ PPE should be appropriate for the hazard level and well-maintained.¹²
• Arc Flash Safety: Understanding and mitigating the risks of arc flash, a high-energy explosion. Arc-resistant switchgear designs help contain/direct energy.¹ Maintaining safe working distances. Learn more about arc flash safety.
• Other Procedures: Proper training, emergency response plans, use of correct tools, avoiding work in wet conditions.¹¹

Electrical work, especially on switchgear, is inherently hazardous. These procedures are non-negotiable for protecting lives. A comprehensive safety culture, not just adherence to procedures, is vital. This includes ongoing training, pre-job risk assessments, and empowering personnel to stop work if conditions are unsafe. The specific procedures (LOTO, PPE, arc flash precautions) are listed. Emphasis is placed on "understanding the risks and adhering to safety protocols".¹² However, merely having procedures is insufficient; they must be consistently followed and ingrained in the work culture. Factors like complacency, rushing, or inadequate training can undermine even the best-written procedures. Arc flash hazard analysis (to determine incident energy levels and required PPE) is a critical and complex study that should be performed for all switchgear installations. The results of this analysis directly inform safe work practices and PPE selection. Standards like NFPA 70E provide detailed guidance on electrical safety in the workplace.

9. The Future of Switchgear: Innovations and Trends

The switchgear industry is rapidly evolving, driven by digitalization, sustainability goals, and the demand for enhanced safety.

9.1. Smart Switchgear: Digitalization and IoT Integration

• Digital/Smart Switchgear: Integrates intelligent sensors, Internet of Things (IoT) capabilities, and communication protocols for real-time monitoring, predictive maintenance, and enhanced fault diagnostics.⁴
• Remote Monitoring & Control: Allows operators to remotely monitor switchgear health and performance, and in some cases, perform control actions.¹³ ABB's "PrimeGear ZX0" offers real-time monitoring.¹³
• Predictive Maintenance: Utilizes sensor data and machine learning algorithms to proactively predict potential failures and schedule maintenance, reducing downtime and improving reliability.⁴ GE's g³ switchgear uses IoT for predictive maintenance.¹³
• Automation & Grid Modernization:(your-blog-url-for-smart-switchgear) is a key component of smart grids and digital substations, enabling advanced automation, better fault management, and integration with wider grid control systems.¹³
• Benefits: Increased operational efficiency, enhanced safety, cost savings, improved fault detection.⁴

This represents a paradigm shift from traditional electromechanical devices to intelligent, data-driven assets. The vast amount of data from smart switchgear requires robust data management, analytical capabilities, and skilled personnel to turn data into actionable insights for improved operations and maintenance. Smart switchgear involves "smart sensors and IoT capabilities" ⁴ and "communication protocols".⁴ This generates a large volume of real-time data on equipment condition and performance.³³ To realize benefits like "predictive maintenance" and "enhanced fault diagnostics" ⁴, this data must be effectively collected, stored, processed, and analyzed. This requires infrastructure (communication networks, data storage) and expertise (data scientists, analysts familiar with power systems). The value of smart switchgear lies not just in the hardware but in the software, analytics, and service ecosystem that supports it. This also opens up new business models for manufacturers (e.g., data-as-a-service, predictive maintenance contracts).

9.2. Eco-Friendly Solutions: Alternatives to SF6

Due to the high global warming potential of Sulfur Hexafluoride (SF6), there's a strong push to transition away from SF6-based systems.⁴ Key(your-blog-url-for-sf6-alternatives) include:

• GE's "Green Gas for Grid" (g³).¹³
• Siemens' "Blue GIS" (clean air and vacuum technology).¹³
• Carbon Dioxide (CO2) as an insulating gas.⁶
• Vacuum technology combined with other eco-friendly gases or dry air.¹³ This transition is driven by environmental regulations, sustainability goals, and corporate social responsibility.¹³ Challenges include high initial costs and the technical complexity of transitioning from SF6.¹³

This is one of the most significant environmental challenges and innovation drivers in the MV and HV switchgear industry. The adoption rate of SF6 alternatives will depend not only on their technical viability and environmental benefits but also on their lifecycle costs, regulatory mandates, and industry confidence in their long-term performance and reliability. SF6 has excellent technical properties but severe environmental impact.¹³ Alternatives are emerging.⁶ However, "high initial costs and technical complexities" are barriers.¹³ Utilities and industrial users are typically conservative, prioritizing reliability and proven technology, especially for critical assets like switchgear. Therefore, widespread adoption will require a strong business case (total cost of ownership, regulatory incentives/penalties) and extensive field validation of the new technologies. The transition to SF6-free switchgear will necessitate new standards for gas handling, testing, and end-of-life management of the alternative substances. It also creates opportunities for manufacturers who can offer proven, cost-effective, and environmentally sound solutions.

9.3. Enhanced Safety Features and Arc Resistance

There is a continuous focus on improving safety, particularly mitigating arc flash hazards. Arc-resistant switchgear is designed to safely contain arc flash energy and direct it away from operators.¹ Features like isolated compartments for busbars, switches, and instruments minimize arc flash risks.¹¹ Remote operation capabilities reduce personnel exposure to high-voltage risks.¹⁵

Personnel safety remains paramount, with arc flash being a major hazard. The development of arc-resistant designs and remote operation capabilities reflects a proactive "designing out" of hazards, rather than relying solely on PPE and procedures. Arc flash is a severe hazard.¹¹ Arc-resistant enclosures "contain and redirect arc flash energy".¹ Remote operation ¹⁵ keeps personnel away from the immediate vicinity of danger during switching operations. These are engineering controls, which are higher on the hierarchy of hazard controls than administrative controls (procedures) or PPE. Arc-resistant testing standards (e.g., IEEE C37.20.7) are becoming more common, and users are increasingly specifying arc-resistant switchgear, especially in applications with high incident energy levels or where personnel interact frequently with the equipment.

9.4. Cybersecurity for Smart Switchgear: Risks and Mitigation

The increased connectivity of smart/digital switchgear to Industrial Control Systems (ICS) and SCADA introduces cybersecurity vulnerabilities.³³ Malicious actors could potentially gain network access to critical assets, potentially disrupting power distribution or causing damage.³⁴ Risks include unauthorized access, denial of service, data breaches, and manipulation of control commands.

Best Practices for Mitigation:

• Security by Design: Integrating security into product development from the outset (Secure Development Lifecycle).³⁵
• Defense in Depth: Layered security measures (network segmentation, firewalls, intrusion detection/prevention).³⁴
• Hardening: Securing devices by disabling unused ports/services, changing default passwords, regular patching.³⁴
• Whitelisting: Allowing only approved applications or communications.³⁴
• Access Control: Individual user accounts, strong authentication.³⁵
• Monitoring & Logging: Detailed security event logs for auditing and incident response.³⁵
• Regular Assessments & Updates: Periodically assessing cybersecurity posture, applying patches, and adapting to evolving threats.³⁴
• Compliance with standards like IEC 62443.³⁴

As switchgear becomes a networked device, protecting it from cyber threats is as critical as protecting it from electrical faults. Cybersecurity in the switchgear environment requires a holistic approach involving technology, processes, and people, spanning the entire product lifecycle from design through operation and maintenance. It's not a one-time fix but an ongoing process. Smart switchgear is connected ³³, creating an attack surface. A range of technical (hardening, defense-in-depth, whitelisting) and procedural (assessments, lifecycle management, training) measures are outlined.³⁴ "Security by design" and a three-stage approach: Assess, Implement, Sustain are emphasized.³⁵ This implies that securing smart switchgear is more than just installing a firewall; it's a continuous cycle of risk assessment, mitigation, monitoring, and adaptation. The convergence of Operational Technology (OT), like switchgear, and Information Technology (IT) requires closer collaboration between power system engineers and cybersecurity experts. Lack of cybersecurity preparedness for critical infrastructure like the power grid can have severe national security implications.

10. Making the Right Choice: Key Selection Criteria

Selecting the right switchgear is a complex decision involving many technical, environmental, and economic factors. The table below outlines key factors to consider when choosing switchgear, providing users with a structured decision-making framework. For a deeper dive, consider exploring resources on switchgear selection criteria.

Table 7: Key Factors for Switchgear Selection

10.1. Electrical System Parameters

The first step in selecting switchgear is an accurate assessment of the electrical system's parameters. This includes rated voltage, continuous current, expected maximum fault current (short-circuit current rating or interrupting capacity), short-time withstand current, total power demand (kVA), system frequency (50Hz or 60Hz), type of connected loads (e.g., motors, lighting, transformers), and duty cycle.²¹ Accurate assessment of these parameters is foundational for all subsequent decisions and directly relates to whether the switchgear can operate safely and reliably under normal and fault conditions. Any underestimation can lead to undersized equipment, risking overheating, failure to interrupt fault currents, or even catastrophic failure. Conversely, significant overestimation can lead to unnecessary cost increases.

10.2. Environmental and Physical Constraints

The environmental conditions of the installation site significantly influence switchgear selection. Factors to consider include ambient temperature range, humidity levels, concentration of airborne dust and contaminants, presence of corrosive substances (like salt spray, chemical gases), altitude, and whether it's an indoor or outdoor installation.²² These factors will dictate the required enclosure protection rating (IP/NEMA), material selection (e.g., corrosion-resistant materials), insulation design, and whether additional heating or cooling measures are necessary. Physical constraints, such as available space and accessibility for equipment, also impact the type and configuration of switchgear chosen; for instance, space-constrained locations might favor compact GIS or draw-out switchgear.

10.3. Insulation and Interrupting Medium Considerations

The choice of insulating medium (e.g., air, SF6 gas and its alternatives, oil, vacuum) and the interrupting medium for circuit breakers is a critical technical decision that involves trade-offs between performance, cost, space occupation, and environmental impact.¹ For example, Air-Insulated Switchgear (AIS) is generally less expensive but requires more space, while Gas-Insulated Switchgear (GIS) is more compact but may have higher initial costs, and SF6 gas has environmental concerns, prompting the development of alternatives. Vacuum interrupters are widely used in medium voltage due to their excellent performance and maintenance-free characteristics. Selecting the appropriate insulation and interrupting medium requires a comprehensive consideration of the application's voltage level, environmental conditions, maintenance strategy, and requirements for environmental sustainability.

10.4. Construction, Configuration, and Safety Features

The construction type of the switchgear (e.g., metal-enclosed, metal-clad, pad-mounted) and its configuration (e.g., fixed, draw-out) directly affect its safety, maintainability, and footprint.¹⁵ Metal-clad switchgear offers higher safety and fault containment by isolating primary components in separate grounded metal compartments. Draw-out designs allow key components like circuit breakers to be maintained or replaced without de-energizing the main bus, enhancing safety and maintainability. Arc-resistant design is an important safety feature aimed at safely containing and directing the energy of an arc fault to protect operators. Selection should ensure the switchgear's construction and safety features align with the facility's safety policies and operational needs.

10.5. Standards Compliance and Interoperability

Ensuring the selected switchgear complies with relevant national and international standards (e.g., IEC, ANSI/IEEE, NEMA, UL) is crucial.⁷ Standards compliance is not only a legal and regulatory requirement but also an assurance of the equipment's safety, performance, and quality. It also helps ensure the interoperability of the switchgear with other power system components. In international projects, particular attention must be paid to the differences between various standards systems, and the standard applicable to the project location must be chosen.

10.6. Maintenance, Reliability, and Total Cost of Ownership (TCO)

When selecting switchgear, one should not focus solely on the initial purchase price but conduct a comprehensive Total Cost of Ownership (TCO) analysis. TCO includes initial cost, installation cost, operational costs (like energy consumption), maintenance costs (including inspections, repairs, and spare parts replacement), and potential downtime losses.²¹ Switchgear with high reliability and low maintenance requirements, though potentially having a higher initial investment, may offer a lower TCO in the long run. Therefore, it is important to evaluate metrics such as expected maintenance effort, Mean Time Between Failures (MTBF), and Mean Time To Repair (MTTR) for different switchgear options.

10.7. Manufacturer Reputation and Support

Choosing a reputable and experienced manufacturer or supplier is vital.²⁷ One should investigate the manufacturer's experience in designing and producing similar switchgear, their R&D capabilities, quality control processes, ability to deliver on time, and the warranty terms offered. Good customer service and technical support capabilities, including spare parts availability and field service, are also important considerations. Partnering with a reliable provider can ensure product quality, smooth project execution, and necessary support throughout the equipment's lifecycle.

10.8. Future Adaptability and Technological Advancements

When selecting switchgear, its adaptability to future needs and technological developments should also be considered. This includes system scalability to accommodate potential future load growth or network configuration changes. Furthermore, with the development of smart grids and digitalization trends, one should assess whether the switchgear supports or can be easily integrated with smart features such as remote monitoring, diagnostics, and control.¹³ Opting for switchgear that employs environmentally friendly technologies (like SF6 alternatives) also helps meet increasingly stringent environmental regulations and corporate sustainability goals, thereby ensuring the long-term value of the investment.

11. Conclusion

Electrical switchgear, as an indispensable component of power systems, plays a central role in ensuring the safety, reliability, and efficiency of electricity supply. This report has provided a comprehensive elucidation of switchgear, from its fundamental definition and functions to its complex component makeup, diverse classification methods, wide-ranging industry applications, and stringent international standards.

A thorough understanding of switchgear's various functions—protection, isolation, control, and distribution—is crucial for recognizing its critical value in modern society.¹ Each component, from circuit breakers and fuses to relays and instrument transformers, plays a specific and vital role in the overall performance of the switchgear.¹⁷ Different classifications based on voltage level, insulating medium, and construction type enable switchgear to be adapted to a variety of application scenarios, from residential buildings to large-scale power transmission networks.⁶

International standards such as IEC and ANSI/IEEE provide the framework for the design, manufacture, and testing of switchgear, ensuring safety and interoperability on a global scale, although differences exist in their design philosophies and specific requirements.²⁸ Equally critical is the regular, standardized maintenance of switchgear and strict adherence to safety operating procedures, which are fundamental prerequisites for guaranteeing the long-term reliable operation of the equipment and personnel safety. You can explore more about switchgear maintenance best practices for detailed guidance.

Looking ahead, switchgear technology is undergoing profound transformation. The integration of intelligence, digitalization, and IoT technologies is converting traditional switchgear into smart nodes capable of real-time monitoring, predictive maintenance, and remote control.⁴ Growing attention to environmental sustainability is driving the research and application of alternatives to traditional insulating media like SF6.¹³ Concurrently, enhanced safety features, particularly arc-resistant designs and cybersecurity measures, have become focal points of technological development.¹⁵

In summary, selecting the appropriate switchgear is a comprehensive decision-making process involving multiple factors, requiring careful evaluation of system requirements, environmental conditions, technical performance, standards compliance, maintenance needs, and total lifecycle costs. As technology continues to advance and power system demands evolve, switchgear will remain a cornerstone of modern electrical infrastructure, continuously adapting to new challenges and meeting higher expectations to provide a solid power guarantee for sustainable socio-economic development.
