Donut current transformers are also crucial tools in electrical systems, providing insight into the amount of electric current flowing through a given circuit. These donuts are used to measure how much current flows in a wire without touching it. These special kinds of transformers are extensively used in different applications and hold a great significance in electrical systems.

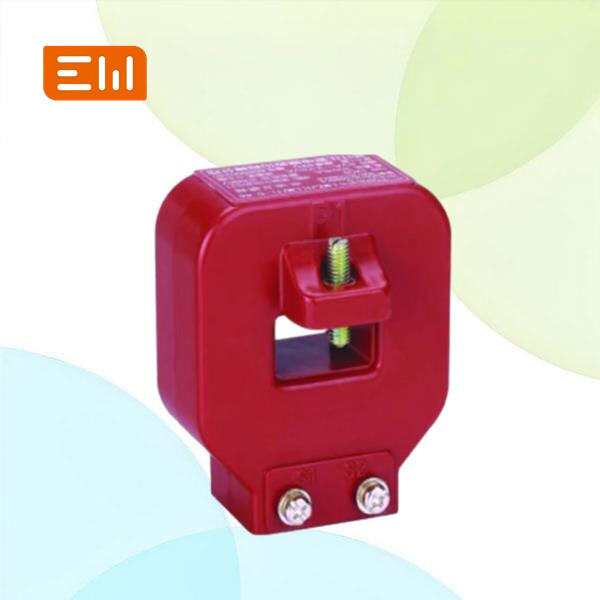

Also known as toroidal current transformers, transformer componentss measure the current in a given circuit. They have a central hole for a wire to pass through. The donut current transformer works on the principle of electromagnetic induction. That is to say, a winding of wire mounted over a magnetic core has a current whose intensity mirrors the one flowing within the wire itself.
Donut current transformers are utilized in electrical systems for various good reasons. One major benefit is that they are easy to install. You can quickly wrap them around the wire that actually carries the current, making them quick to set up. They are very small so they are ideal for compacted areas where there is lack of space.
Now, the next great thing for oil for transformerss is that they are pretty accurate. Because they do not physically contact the wire that carries the current they do not disrupt the circuit. Make sure you are making the correct current measurements. The accuracy of these devices is critical in sensitive situations where precise measurements are required.

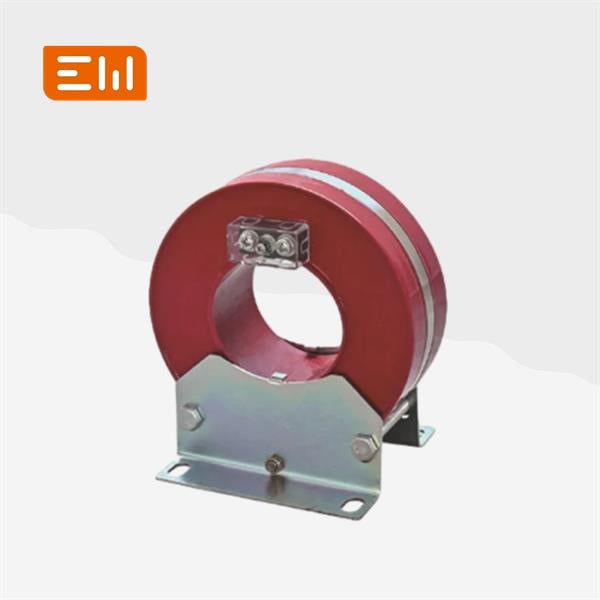

Now donut current transformers, they're easy to install. The first step is to identify the current transformer size and the current flowing in the circuit. Once you have selected the appropriate size, you can wrap the donut current shuffler around the wire with the tools that come along with it.
Once it is installed, the wires from the donut current transformer must be connected to a measuring device such as a meter or relay. “If you have a couple of light fixtures, make sure if you purchase them, you follow the directions from the manufacturer on how to connect everything.” Now that the wiring is done, the donut CT can begin to measure current in the suited circuit.
Compared to traditional current transformers, donut current transformers have some strengths. One major difference is their miniaturization, which helps with installation in even the tightest places. Conventional current transformers are huge and occupy more volume.
