Ever wonder how we count something like electricity to power our homes and our gadgets? Current Transformers, CTs, are an integral part of this. CTs are instruments we use to measure the flow of electric current in a wire. They transform high electric currents into smaller ones that are easier to measure with meters.
Various Kinds of Current Transformers

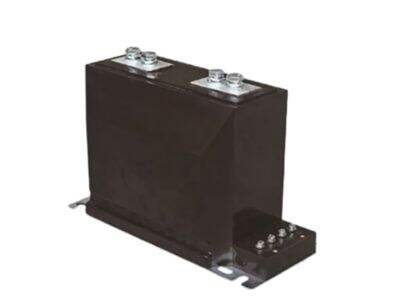

There are many designs of current transformers (“CTs”), each tailored to a specific application. A popular alternative is a donut shaped CT. As it's passed around a single wire, it can measure the current flowing through it. Then there are split-core CTs, which can be opened up and clamped around the wire without disconnecting it respectively. Bar type CTs are available for high voltage measurements and PCB-mounted CTs can be found inside of electronic devices.
Selecting the Right Current Transformer
There are various ratings of current transformers. These ratings tell you how much current they can accurately measure. The CT should have a rating that is appropriate for the current in your circuit. The measurements may be incorrect if you use a CT with a lower rating. The Transformer Components would be damaged if it is rated higher. One important thing to keep in mind is to always check the rating of the CT before you install it to ensure it works as efficiently as possible.
The Significance Of Correct Installation
It is important to install current transformers properly for both accurate measurement and safety. CTs must be installed by a professional to ensure they are put in the correct position. CTs that aren’t installed properly can deliver incorrect readings and lead to unsafe conditions. When you are installing CTs be sure to install them as per the current transformer manufacturers procedures to get the most from them.
Guidelines about Safe Installation of Current Transformers
Here are some useful things to keep in mind during the installation of CTs:
Ensure the CT is sized properly for the current on the circuit.
Verily secure the device ground.Determining m11, m12, m21, and m22: Verily the scanning FET is not shorted (also check connections).
Verify all leads and connections and none are left hanging.
Test the CT after it has been installed to verify that it measures current properly.
For safety always use rubber gloves when handling cord. Use in dry location only.
