Switchgear: The Comprehensive Guide to Electrical Power Control and Protection

Are you looking to understand switchgear, the cornerstone of modern electrical power distribution? These critical systems are fundamental to ensuring the safety, reliability, and efficiency of electrical installations worldwide. This guide will cover the basics of switchgear. It will look at its important parts and its key role in modern power networks. This includes how it works with renewable energy. We will also discuss how to choose the best solutions for your needs. Let's explore the world of switchgear.

What is Switchgear? Understanding the Basics

The term "switchgear" means a group of electrical disconnect switches, fuses, or circuit breakers. These devices control, protect, and isolate electrical equipment. Switchgear is an important part of any power system protection plan. It helps manage and protect electrical circuits from damage. This damage can come from overloads, short circuits, or other faults.

electrical safety

Effective and reliable switchgear is paramount for the safe and efficient operation of electrical power systems. It ensures the smooth flow of electricity and mitigates the risk of power outages and equipment damage. Switchgear is an important safety tool. It protects against electrical faults and allows safe shutdowns for maintenance. This helps prevent injuries and damage to equipment. It also ensures electrical safety when handling dangerous energy.

Switchgear solutions are indispensable across a multitude of industries, managing primary power distribution and handling various voltage levels. Their presence is key to maintaining system stability and reliability. As the world uses more renewable energy, switchgear technology is changing to meet new needs. It helps connect green energy sources to current power grids and supports the move to cleaner energy.

Why is Switchgear Vitally Important in Power Networks?

Switchgear assemblies are fundamental to power distribution networks. They ensure the safe and efficient operation of electrical power by controlling its flow and protecting connected devices. This enhances the overall dependability of the power network and is central to robust power system protection.

Key roles of switchgear include:

• Protection: Guarding electrical systems against faults like short circuits and overloads. This minimizes downtime and equipment damage, helping maintain a steady power supply.
• Isolation: This means turning off certain parts of the network for maintenance or repair. This can be done without shutting down the whole system. This improves electrical safety during upkeep and prevents widespread power cuts.
• Control: Managing power flow, adapting to changes in electricity demand, and ensuring electrical systems operate within safe parameters.
• Integration of Renewables: Helping to add renewable energy sources by managing different power inputs. This supports two-way power flow, which is important because energy can be sent back into the grid. This makes power networks more flexible and resilient.

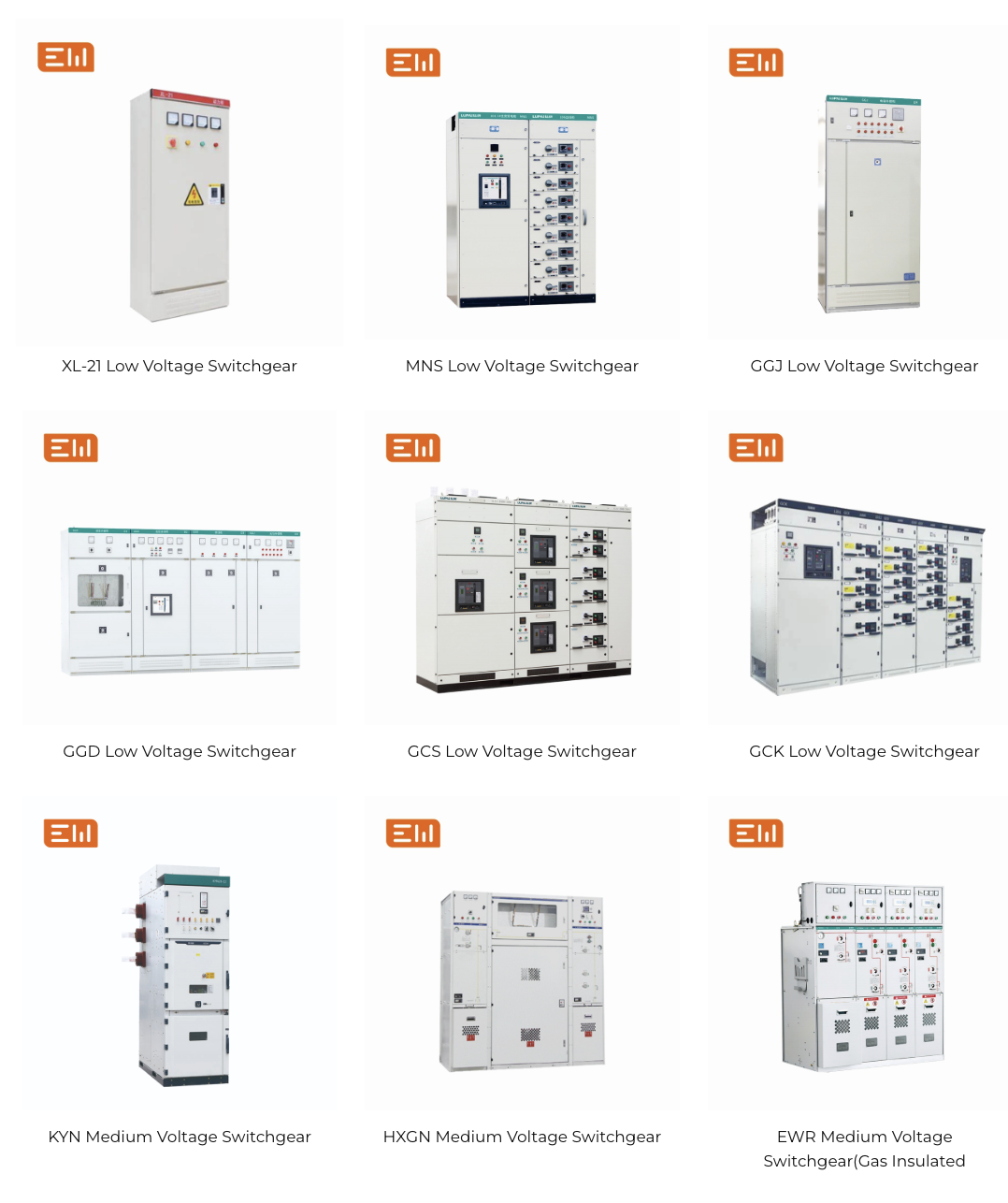

Types of Switchgear by Voltage Class

Switchgear is primarily categorized by the voltage level it is designed to handle: low, medium, and high voltage. Each type is engineered for specific applications and locations within power systems.

Low Voltage (LV) Switchgear

Low Voltage (LV) switchgear operates at voltages up to $1000\text{ V AC}$ (or $1\text{ kV}$). It is commonly used in residential, commercial, and industrial applications for local power distribution and protection.

LV switchgear has several parts. These include:

• Air circuit breakers (ACBs)
• Molded case circuit breakers (MCCBs)
• Miniature circuit breakers (MCBs)
• Switch fuse units

These systems are important for safety and good performance in daily electrical use. This includes basic tasks like using extension cords with the right circuits.

➡️ Discover Our Low Voltage Switchgear Solutions

Medium Voltage (MV) Switchgear

Medium Voltage (MV) switchgear is designed for systems operating from $1\text{ kV}$ up to $36\text{ kV}$ (though some standards extend to $52\text{ kV}$). It is often found in factories and utility stations. You can also see it in large commercial buildings. Additionally, it is present at renewable energy sites, such as solar farms and wind turbines. It is used for main distribution and protection. MV switchgear provides safe and reliable electricity transmission and distribution. It includes advanced protection devices and relays. These devices, like modern solid-state relays, respond quickly to detect and isolate faults. These systems are key for maintaining dependable electric power in demanding environments.

➡️ Explore Our Medium Voltage Switchgear Portfolio

High Voltage (HV) Switchgear (Brief Overview)

Enwei Electric focuses on Low and Medium Voltage solutions. It is helpful to know that High Voltage (HV) switchgear works at voltages above $36\text{ kV}$ (or $52\text{ kV}$). It is essential for bulk power transmission and major substations within national grids. HV switchgear components include high-capacity circuit breakers, like air-insulated and gas-insulated ones such as SF6. They also include disconnectors and advanced protection systems. These systems are designed to manage large power flows efficiently over long distances. They help ensure grid stability.

Key Components of Switchgear Systems

Switchgear assemblies are comprised of several critical components working in unison:

• Circuit Breakers: These are automatic devices that stop an electric circuit. They help prevent damage from too much current due to an overload or short circuit. Their quick action minimizes downtime and protects the electrical system.
• Switches: Devices for opening and closing circuits, or for isolating parts of a system. This includes disconnect switches (isolators) and load break switches.
• Fuses & Switch Fuse Units: Fuses protect against too much current. They have a part that heats up and breaks when the current is too high. Switch fuse units serve as both a switch and a fuse. They provide a compact way to protect and isolate circuits, especially in low voltage systems.
• Protection Devices and Relays: These intelligent devices detect abnormal conditions such as overcurrent, undervoltage, overvoltage, and earth leakage. Relays receive signals from instrument transformers (CTs, VTs) and initiate tripping actions in circuit breakers to isolate faults quickly. Modern systems often use solid-state relays for faster, more precise control compared to traditional electromechanical relays.
• Busbars: Conductive bars or tubes that carry large currents and distribute power to various circuits within the switchgear assembly.
• Instrument Transformers: Current Transformers (CTs) and Voltage Transformers (VTs or PTs) reduce high currents and voltages. They make these levels safe and measurable for meters and protective relays.
• Enclosures: The physical structure housing the components, providing protection against environmental factors and ensuring operator safety.

Essential Safety and Protection Features in Switchgear

Safety is paramount in switchgear design and operation:

• Arc Flash Mitigation: Arc flash events are dangerous electrical explosions that can cause severe injuries and extensive equipment damage. Switchgear is made to reduce arc flash risks. It does this by quickly fixing faults, containing the arc, or using arc-resistant designs. Advanced protection parts and good risk assessments are key for arc flash prevention. Using the right Personal Protective Equipment (PPE) is also important for managing hazardous energy.
• Earth Leakage Protection: Earth leakage (or ground fault) currents can pose significant shock hazards and cause equipment damage. Switchgear includes devices like Residual Current Devices (RCDs) and Earth Leakage Relays (ELRs). These devices find faults and quickly cut off the power. This helps prevent electric shock and keeps electrical safety in check.
• Safe De-energization for Maintenance: Switchgear helps safely turn off and isolate equipment. This is important for regular maintenance. This prevents accidental contact with live parts, safeguarding workers from hazardous energy. Proper lockout/tagout procedures are integral to this process, ensuring system reliability and extending equipment lifespan.

The Role of Switchgear in Renewable Energy Systems

The growing use of renewable energy sources, such as solar and wind power, is changing power systems. Switchgear is very important in this change. It makes sure that green energy connects to power grids safely and efficiently. This provides needed power system protection and control for these often unreliable sources.

Switchgear helps manage the variable output of renewable energy, maintaining power distribution stability as generation fluctuates. This adaptability is key for consistent power quality. Modern switchgear allows power to flow in both directions. This is important for systems that send energy back to the grid, like solar PV installations. It improves the flexibility and strength of the network. As renewable energy grows, switchgear technology must change to meet new challenges. These include decentralized power generation and microgrids. This will help ensure that these energy systems work efficiently and reliably.

Switchgear's Critical Role in Modern Power Distribution

Switchgear is indispensable in today's power distribution networks. It facilitates the control and protection of electric power flow, which is fundamental for power system protection and reliability. By effectively managing circuits, it minimizes power outages and disturbances.

In primary distribution networks, switchgear divides power into manageable sections. This segmentation helps isolate faults locally, preventing widespread outages and maintaining overall network stability. Medium voltage switchgear is particularly important in industrial settings, enhancing operational safety and efficiency. In urban areas and critical infrastructure, switchgear ensures reliable electric power delivery, contributing to public safety and economic continuity.

The advent of digital technologies is making switchgear "smarter." Intelligent Electronic Devices (IEDs) enable real-time monitoring, diagnostics, and remote control. This digitalization enhances the dependability and efficiency of power distribution systems, especially in complex networks.

Switchgear Maintenance and Testing

Regular maintenance and testing of switchgear are crucial for its continued reliability and safety. A proactive approach minimizes the risk of equipment failure and unplanned downtime. Careful inspections can identify potential issues early, which is essential for both electrical safety and power system protection.

Key aspects of switchgear maintenance include:

• Visual Inspections: Checking for signs of wear, corrosion, overheating, or loose connections.
• Cleaning: Removing dust and contaminants that can lead to tracking or insulation breakdown.
• Mechanical Testing: Verifying the proper operation of circuit breakers, switches, and other mechanisms.
• Electrical Testing: This includes insulation resistance tests, contact resistance tests, and tests of protection devices and relays. We also test solid-state relays to make sure they work as expected.

Proper upkeep extends the lifespan of switchgear, improves safety by mitigating risks associated with hazardous energy, and prevents costly, unexpected power interruptions.

Conclusion: The Evolving Future of Switchgear Technology

Switchgear technology is continuously evolving to meet the demands of modern power systems. Innovations like smart grid integration and digital monitoring are enhancing operational efficiency and reliability. The increasing penetration of renewable energy sources presents new challenges and opportunities, driving switchgear to become more adaptable and intelligent. Future advancements will aim to improve reliability and safety. There will be a strong focus on electrical safety and strong power system protection. We will also work on environmental sustainability. For example, we will develop SF6-free options for gas insulation.

Switchgear will continue to play a vital role in primary distribution and beyond. Its development is ongoing. It includes smaller designs that have better gas insulation. It also features smarter solid-state relays and improved technologies for preventing arc flashes. This is key to creating a stronger, more efficient, and sustainable power future.
